High Efficiency 36W LED Flat Panel Lights CRI 85 For Office Lighting
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | LED flat panel ceiling lights,LED flat panel lighting |
||
|---|---|---|---|

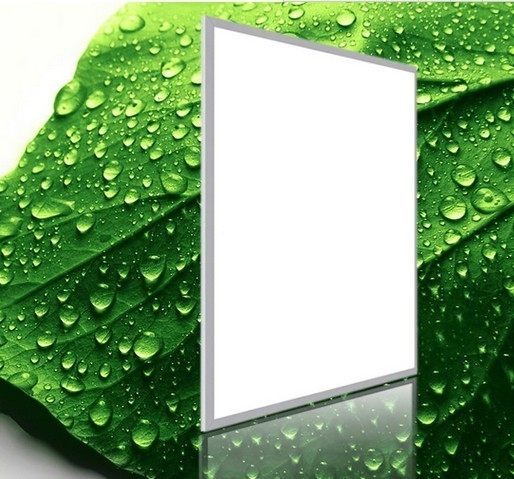

High Efficiency 36W LED Flat Panel Lights CRI 85 For Office Lighting
Quick Detail:
1. Slim boarder design, elegant appearance, 9.5mm thickness only
2. Mitsubishi light guidance plate
3. Laser engraving treatment
4. Even light and no dark spot, efficacy > 80 LM/W
5. CE RoHS TUV UL compliant
6. 3 years warranty
7. Up to 70% energy savings
Features:
-
Pure aluminum frame, bright silver processing, good heat dissipation, high-grade appearance
-
Imported LGP from Japan, even and soft light, the light guide light rate is 85% above
-
High efficiency constant current driver can reach more than 90%, PF>0.92
-
No infrared and ultraviolet radiation, low heat radiation
-
AC90V ~ 265V voltage, external constant current drive power, safe and reliable
-
Easy and concise installation
-
Even light & no dark spot
-
Lifespan over 45,000 hrs
Specifications:
|
Product name |
Wattage |
Voltage |
Size |
Power Factor |
CRI |
Luminous Flux |
CCT |
Lifetime |
|
FLT-PS-L0306-18 |
18 |
90~265 |
295*595 |
>0.9 |
>80 |
1650 |
2700~6800 |
45,000 |
|
FLT-PS-L0306-25 |
25 |
90~265 |
295*595 |
>0.9 |
>80 |
2150 |
2700~6800 |
45,000 |
|
FLT-PS-L0606-36 |
36 |
90~265 |
595*595 |
>0.9 |
>80 |
3050 |
2700~6800 |
45,000 |
|
FLT-PS-L0606-48 |
48 |
90~265 |
595*595 |
>0.9 |
>80 |
4050 |
2700~6800 |
45,000 |
|
FLT-PS-L0312-36 |
36 |
90~265 |
295*1195 |
>0.9 |
>80 |
3050 |
2700~6800 |
45,000 |
|
FLT-PS-L0612-72 |
72 |
90~265 |
595*1195 |
>0.9 |
>80 |
6100 |
2700~6800 |
45,000 |
Connection diagram
Installation of the super slim LED panel light has to be done by professional electrician to ensure the
lifting strength to prevent the LED panel light falling from ceiling.
Cautions:
1,The lamps must be used with the manufacturer appointed power driver
2,You have to cut off electricity to avoid electric shock before installation.
3,Do not use the product in the high humidity or dust environment, including but not limited to
the following environment: bathroom, sauna room, polishing workshop.
