Product Details:
Payment & Shipping Terms:
|
Lifespan: | 45,000 Hours | Material: | Glass And Aluminum |
---|---|---|---|
Chip: | Epistar 2835 SMD | CRI: | > 80 |
Luminous Flux: | 1800 Lm | Warranty: | 5 Years |
CCT: | 2700K~6800K | ||
High Light: | led tube lighting,t8 led tube light |

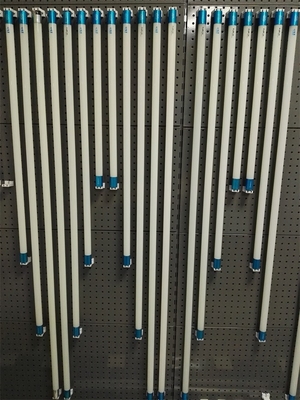

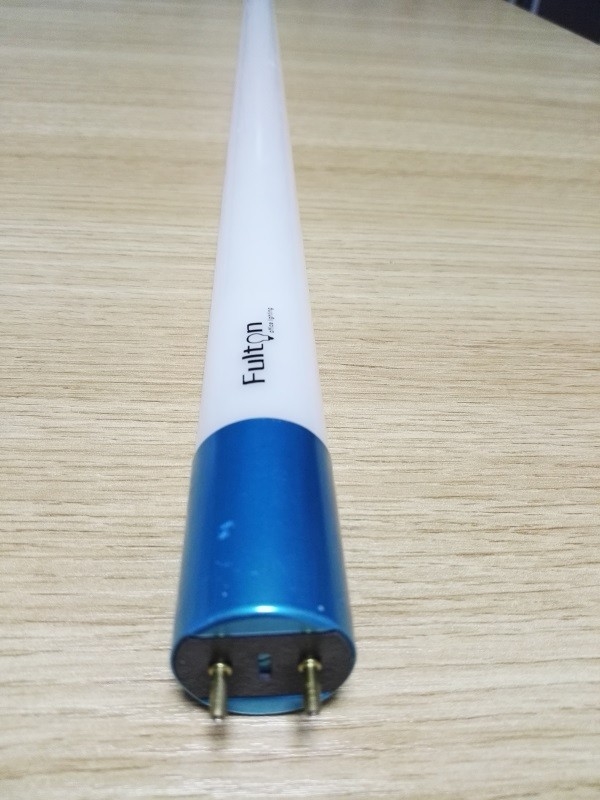

ECO Friendly 1800lm 1200mm LED T8 Glass Tube Light, SAA TUV Certificate
Quick Detail:
1. Provide solutions and high quality products with reasonable price
2. Perfect heat dissipation and low operation temperature
3. Strictly designed for waterproof, dust proof and corrosion proof performance
4.Best design for low LED light decay & long life time, working hours up to 45,000 hours
Competitive Advantages:
1. Wide range of application
2. Environmental protection
3. Instant start, no flickering, no humming
4. R&D department to support and offer excellent ODM & OEM services
Specifications:
Product name (No.) |
Wattage (W) |
Voltage (V) |
Dimension (mm) |
Power Factor (Lamp) |
CRI (Ra) |
Luminous Flux (Lm) |
CCT (K) |
Lifetime (hrs) |
FLT-T8P-10L6 | 10 | 90-265 | D26*604 | >0.9 | >80 | 1000 | 2700-6800 | 45,000 |
FLT-T8P-12L9 | 12 | 90-265 | D26*908 | >0.9 | >80 | 1200 | 2700-6800 | 45,000 |
FLT-T8P-18L12 | 18 | 90-265 | D26*1212 | >0.9 | >80 | 1800 | 2700-6800 | 45,000 |
FLT-T8P-22L15 | 22 | 90-265 | D26*1512 | >0.9 | >80 | 2200 | 2700-6800 | 45,000 |
Inatallation instructions of LED Tube Light:
1. Switch off the power.
2. Remove old fluorescent tube,check existing fixture for any damage or loose connection, locatethe starter.
3. Remove starter ( or also known as choke) by rotating it and pull it out from fixture.
4. Install the LED T8 Tube Light, connect the power.
5. Switch on the power if above steps done properly without any mistakes.
